Name: | SC ONU | Type: | SFU |
---|---|---|---|
Warranty: | 13 Months | Certification: | CE |
Box: | Pager | Size: | 7cm |
Application: | For SFP | Color: | WHITE |
High Light: | SFU GPON Stick,2.5G SC ONU GPON Stick,gpon sfp b+ RJ45 |

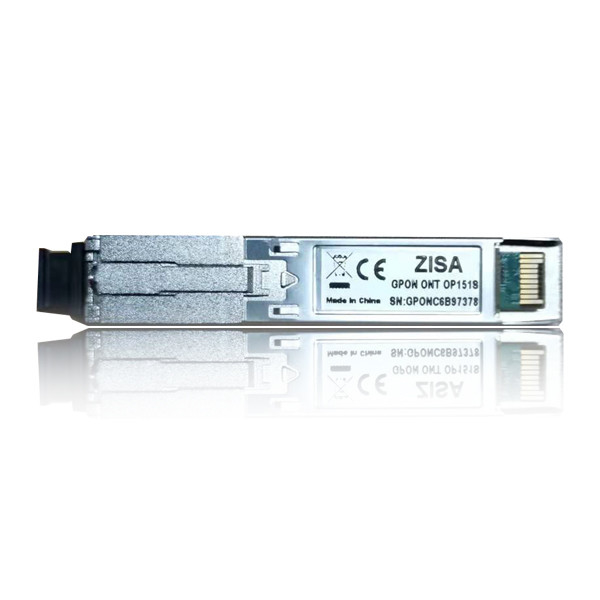

SFU 1.25G 2.5G SC GPON ONU STICK B+ SFP Module RJ45 Port
Performance
Absolute Maximum Ratings | |||||
Parameter | Symbol | Min | Max | Units | Notes |
Storage Ambient Temperature | Tstg | -40 | +85 | ºC |
Exceeding the Absolute Maximum Ratings may cause irre-versible damage to the device. The device is not intended to be operated under the condition of simultaneous Absolute Maximum Ratings, a condition which may cause irreversible damage to the device. |
Relative Humidity - Storage | RHS | 0 | 95 | % | |
Relative Humidity - Operating | RHO | 5 | 80 | % | |
Module Supply Voltage | VCC | GND | 3.6 | V | |
Tx_DIS Logic HIGH State | Tx_DISH | 2.0 | VCC | V | LVTTL |
Tx_DIS Logic LOW State | Tx_DISL | 0 | 0.8 | V | |
Tx_FAULT Logic HIGH State | Tx_FaultH | 2.4 | - | V | LVTTL (Open Collector/Drain) |
Tx_FAULT Logic LOW State | Tx_FaultL | - | 0.4 | V | |
Rx_LOS Logic HIGH State | Rx_LOSH | 2.4 | - | V | LVTTL (Open Collector/Drain) |
Rx_LOS Logic LOW State | Rx_LOSL | - | 0.4 | V |
Recommended Operating Conditions | ||||||
Parameter | Symbol | Min | Typ | Max | Units | Notes |
Operating Case Temperature | TCASE | 0 | 25 | 70 | ºC | Temperature = C |
-40 | 25 | 85 | ºC | Temperature = I | ||
Module Supply Voltage | VCC | 3.135 | 3.3 | 3.465 | V | |
Module Supply Current (Tx and Rx) | IIN | - | 550 | - | MA | |
Module Power Consumption | PD | - | - | 2 | W | |
Optical upstream Data Rate | BR | - | 1244 | - | Mbps | |
Optical downstream Data Rate | BR | - | 2488 | - | Mbps |
