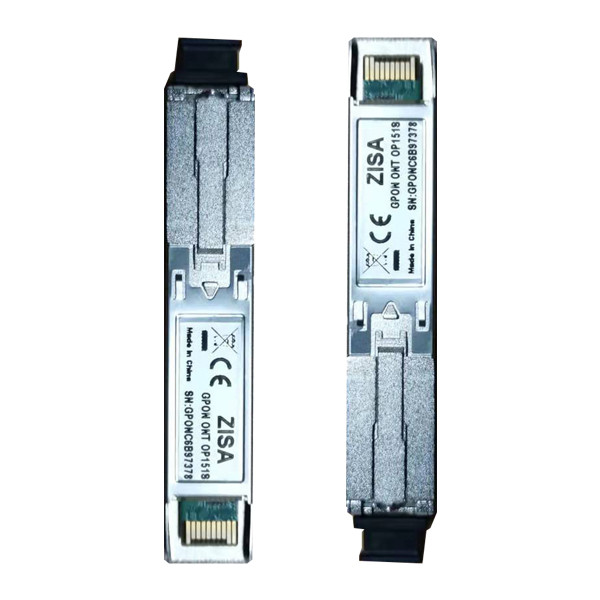

SC ONU GPON STICK RJ45 Port 1.25G 2.5G GPON Class B+ SFP

Basic Information
Place of Origin: CHINA
Brand Name: ZISA
Certification: CE
Model Number: OP151S
Minimum Order Quantity: 1
Price: 60-67USD
Packaging Details: box 1kg
Delivery Time: 5-8weeks
Payment Terms: T/T
Supply Ability: 10000PCS
Detail Information
Name: 1.25G ONU Type: Stick
Warranty: 10 Months Certification: CE
Box: Pager Size: 7cm
Application: For SFP Color: WHITE
High Light:

SC ONU GPON Stick

,

GPON Stick RJ45

,

2.5G GPON Class B+ SFP


Product Description

GPON 1.25G 2.5G SC GPON ONU STICK B+ SFP Module RJ45 Port



Description



OP151S provides the core functionality of an ITU-T G984.5 GPON Optical Network Terminal (ONT) . In addition, the device also offers some advanced functions such as DBA,AES, FEC, PLOAM,OMCI. A powerful Network Processor is provided to allow for traffic prioritiza-tion, local address filtering, and statistics gathering. A dedicated processor provides management control and responds to in-band OAM commands and Host Interface messages for configuration and statistics gathering. By means of configuring personal variables accordingly, the customer can get a device that will fit various application very well.



Performance



Tx_DIS Logic HIGH State Tx_DISH 2.0 VCC V LVTTL
Tx_DIS Logic LOW State Tx_DISL 0 0.8 V
Tx_FAULT Logic HIGH State Tx_FaultH 2.4 - V LVTTL (Open Collector/Drain)
Tx_FAULT Logic LOW State Tx_FaultL - 0.4 V
Rx_LOS Logic HIGH State Rx_LOSH 2.4 - V LVTTL (Open Collector/Drain)
Rx_LOS Logic LOW State Rx_LOSL - 0.4 V
Recommended Operating Conditions
Parameter Symbol Min Typ Max Units Notes
Operating Case Temperature TCASE 0 25 70 ºC Temperature = C
-40 25 85 ºC Temperature = I
Module Supply Voltage VCC 3.135 3.3 3.465 V
Module Supply Current (Tx and Rx) IIN - 550 - MA





FAQ

Q1. ZISA product the quality of products.
A: As the top class total solution provider and productive service provider, we provide high quality of service to Tier1 Telco customer and Vendors. With the genius design and software customization expertise, we can leverage the best service to our customers. ZISA Product quality is same as Huawei and ZTE, and ZISA has complete product line.
Flexible , Smart and selective producing system, the top manufacture in vertical career choose our team, with decade of global market and professional experience.

Q2. ZISA after-sales service.
A:ZISA has complete software and hardware research and development. Provide reqiurment development, bug modify and 24h on-line support. For significant customers, ZISA can send technician to support.
Q3. Ways of cooperation with ZISA.
A :ZISA welcome integrator or agent to agent ZISA product. If agent has enough advantages in the market, ZISA appoint you ZISA sole agent.
Q4. About factory visit.
A :ZISA welcome significant customers to visit ZISA factory. Please make an appointment in two weeks.
Q5. About product pricing.
A :ZISA only publish sample price. The price of different agent and OEM customer is secret. ZISA gives specific price for significant projects and customers. Besides, ZISA only provide goods to agent in agent area.

SC ONU GPON STICK RJ45 Port 1.25G 2.5G GPON Class B+ SFP 0
