| Place of Origin: | CHINA |
|---|---|
| Brand Name: | ZISA |
| Certification: | CE |
| Model Number: | OP151S |
| Minimum Order Quantity: | 1 |
| Price: | 60-67USD |
| Packaging Details: | box 1kg |
| Delivery Time: | 5-8weeks |
| Payment Terms: | T/T |
| Supply Ability: | 10000PCS |
| Name: | GPON SFU | Type: | SFU |
|---|---|---|---|
| Warranty: | 1 YEAR | Certification: | CE |
| Box: | Pager | Size: | 7cm |
| Application: | For SFP | Color: | WHITE |
| High Light: | SFU ONU OLT GPON Stick,GPON Stick 1490nm,20km sc multimode transceiver |
||

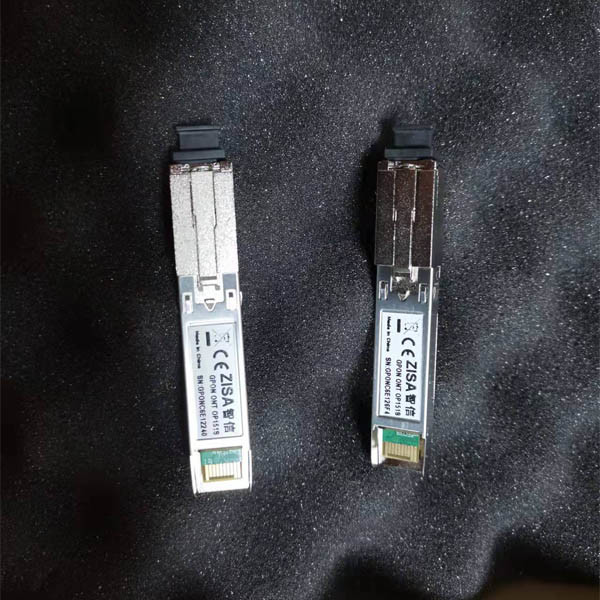

SFU ONU Tx 1310/1490nm 20km SC Transceiver Gpon onu stick for Gpon OLT
Performance
| Absolute Maximum Ratings | |||||
| Parameter | Symbol | Min | Max | Units | Notes |
| Storage Ambient Temperature | Tstg | -40 | +85 | ºC |
Exceeding the Absolute Maximum Ratings may cause irre-versible damage to the device. The device is not intended to be operated under the condition of simultaneous Absolute Maximum Ratings, a condition which may cause irreversible damage to the device. |
| Relative Humidity - Storage | RHS | 0 | 95 | % | |
| Relative Humidity - Operating | RHO | 5 | 80 | % | |
| Module Supply Voltage | VCC | GND | 3.6 | V | |
| Tx_DIS Logic HIGH State | Tx_DISH | 2.0 | VCC | V | LVTTL |
| Tx_DIS Logic LOW State | Tx_DISL | 0 | 0.8 | V | |
| Tx_FAULT Logic HIGH State | Tx_FaultH | 2.4 | - | V | LVTTL (Open Collector/Drain) |
| Tx_FAULT Logic LOW State | Tx_FaultL | - | 0.4 | V | |
| Rx_LOS Logic HIGH State | Rx_LOSH | 2.4 | - | V | LVTTL (Open Collector/Drain) |
| Rx_LOS Logic LOW State | Rx_LOSL | - | 0.4 | V | |
| Recommended Operating Conditions | ||||||
| Parameter | Symbol | Min | Typ | Max | Units | Notes |
| Operating Case Temperature | TCASE | 0 | 25 | 70 | ºC | Temperature = C |
| -40 | 25 | 85 | ºC | Temperature = I | ||
| Module Supply Voltage | VCC | 3.135 | 3.3 | 3.465 | V | |
| Module Supply Current (Tx and Rx) | IIN | - | 550 | - | MA | |
| Module Power Consumption | PD | - | - | 2 | W | |
| Optical upstream Data Rate | BR | - | 1244 | - | Mbps | |
| Optical downstream Data Rate | BR | - | 2488 | - | Mbps | |
FAQ
Q1. ZISA product the quality of products.
A: As the top class total solution provider and productive service provider, we provide high quality of service to Tier1 Telco customer and Vendors. With the genius design and software customization expertise, we can leverage the best service to our customers. ZISA Product quality is same as Huawei and ZTE, and ZISA has complete product line.
Flexible , Smart and selective producing system, the top manufacture in vertical career choose our team, with decade of global market and professional experience.
Q2. ZISA after-sales service.
A:ZISA has complete software and hardware research and development. Provide reqiurment development, bug modify and 24h on-line support. For significant customers, ZISA can send technician to support.
Q3. Ways of cooperation with ZISA.
A :ZISA welcome integrator or agent to agent ZISA product. If agent has enough advantages in the market, ZISA appoint you ZISA sole agent.
Q4. About factory visit.
A :ZISA welcome significant customers to visit ZISA factory. Please make an appointment in two weeks.
Q5. About product pricing.
A :ZISA only publish sample price. The price of different agent and OEM customer is secret. ZISA gives specific price for significant projects and customers. Besides, ZISA only provide goods to agent in agent area.
