Cassette 4 Ports GPON EPON OLT 1U IEEE 802.1x STP RSTP MSTP

Basic Information
Place of Origin: CHINA
Brand Name: ZISA
Certification: CE
Model Number: OP1604e
Minimum Order Quantity: 1
Price: 560-586usd
Packaging Details: 442mm×227mm× 44mm(W * D *H) 3.0KG
Delivery Time: 1week
Payment Terms: T/T
Supply Ability: 1000pcs
Detail Information
Product Name: 4 Ports Epon OLT Power Supply: AC 100 To 240 V AC ; DC 36V-75V
Pon Port: 4 Epon Port Operating Temperature: Temperature 0 To 45°C, Rel. Humidity 10–90% (non-condensing)
Management Mode: Command-line Interface(CLI), Console, Telnet And WEB Configuration Color: Blue
Storage Temperature: Temperature -10 To 70°C, Rel. Humidity 10–90% (non-condensing) Oem/odm: Yes
High Light:

GPON EPON OLT 1U

,

EPON OLT IEEE 802.1x

,

GPON OLT STP RSTP MSTP


Product Description

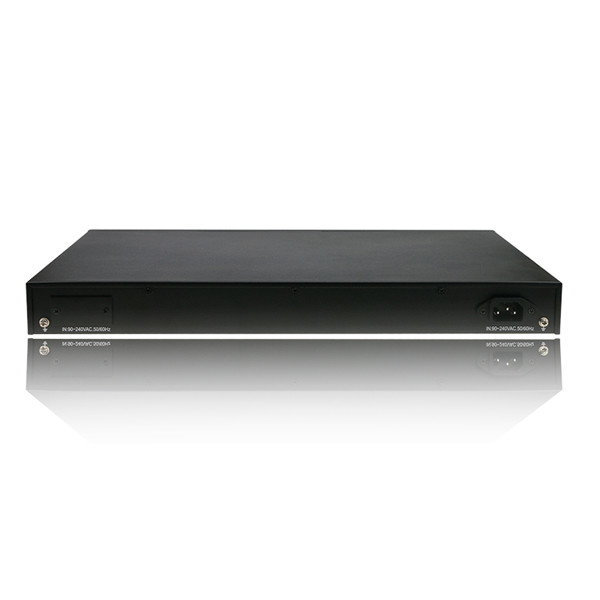

1U Cassette OLT 4 pon ports gpon epon olt OP1604e Gpon OLT



Product Overview



The 1U pizzabox design is for easy installation, Maintenance and Space saving. OP1604E is suitable for Broadcast three in one, video surveillance network, enterprise LAN, Internet of Things, etc.Provide perfect, intelligent, powerful, advanced and professional solutions for FTTH/FTTB projects.OP1604E can be used with NMS3000 network management system so as to provide users with the perfect solution.





Cassette 4 Ports GPON EPON OLT 1U IEEE 802.1x STP RSTP MSTP 0

Key Feature Support on OP1604E



Ethernet switching (L2) features

VLAN



4K VLANentries
Port-based QinQ and Selective QinQ (StackVLAN)
Port-based/MAC-based/IP subnet-based VLA

Spanning tree



IEEE 802.1x STP/RSTP/MSTP
ONU remote loop detection

MAC



MAC Black Hole
Port MAC limit
8K MAC address

Port



Bi-direction bandwidth control
Port mirroring and traffic mirroring
Service features

Multicast



IGMPv1/v2/v3
IGMP Snooping/Proxy
IGMP filtering

QoS





Base on port or user-defined rate limitation
Base on port or user-defined priority tag, provide 802.1P, DSCP tag ability of priority
Base on port or user-defined high grade queue scheduling
priority queues and scheduler of SP, WRR and SP+WRR.
Congestion avoidance system
L2 LACP/VLAN Tag / Un-tag/VLAN transmission/QinQ/802.1D/802.1W
IEEE802.x Flow Control/Port Isolation/Port Rate Limitation/Storm control
Routing(L3) BGP/MPLS/RIP/OSPF/Arp agent,Static routing




FAQ



Q1. ZISA product the quality of products.
A: As the top class total solution provider and productive service provider, we provide high quality of service to Tier1 Telco customer and Vendors. With the genius design and software customization expertise, we can leverage the best service to our customers. ZISA Product quality is same as Huawei and ZTE, and ZISA has complete product line.

Flexible , Smart and selective producing system, the top manufacture in vertical career choose our team, with decade of global market and professional experience.



Q2. ZISA after-sales service.
A: ZISA has complete software and hardware research and development. Provide reqiurment development, bug modify and 24h on-line support. For significant customers, ZISA can send technician to support.

Q3. Ways of cooperation with ZISA.
A : ZISA welcome integrator or agent to agent ZISA product. If agent has enough advantages in the market, ZISA appoint you ZISA sole agent.

Q4. About factory visit.
A : ZISA welcome significant customers to visit ZISA factory. Please make an appointment in two weeks.

Q5. About product pricing.
A : ZISA only publish sample price. The price of different agent and OEM customer is secret. ZISA gives specific price for significant projects and customers. Besides, ZISA only provide goods to agent in agent area.
