| Place of Origin: | CHINA |
|---|---|
| Brand Name: | ZISA |
| Certification: | CE |
| Model Number: | MA5616 |
| Minimum Order Quantity: | 1 |
| Price: | 265-1545USD |
| Packaging Details: | box 14kg |
| Delivery Time: | 1weeks |
| Payment Terms: | T/T |
| Supply Ability: | 100pcs |
| Product Name: | IP DSLAM | Application: | FTTH |
|---|---|---|---|
| Type: | MDU | Warranty: | 1 YEAR |
| Certification: | CE | Port: | 32-128 Adsl2+ Port |
| Operating Temperature: | -40℃ To 65℃; Startup At -25℃ | Management: | Telnet And CLI |
| High Light: | IP DSL modem ADSL2+,DSL modem ADSL2+ MA5616,ADLE Card bonded ADSL2+ modem |
||
ZISA IP DSLAM MA5616 MASN DSLAM super vectoring ADLE card DSLAM

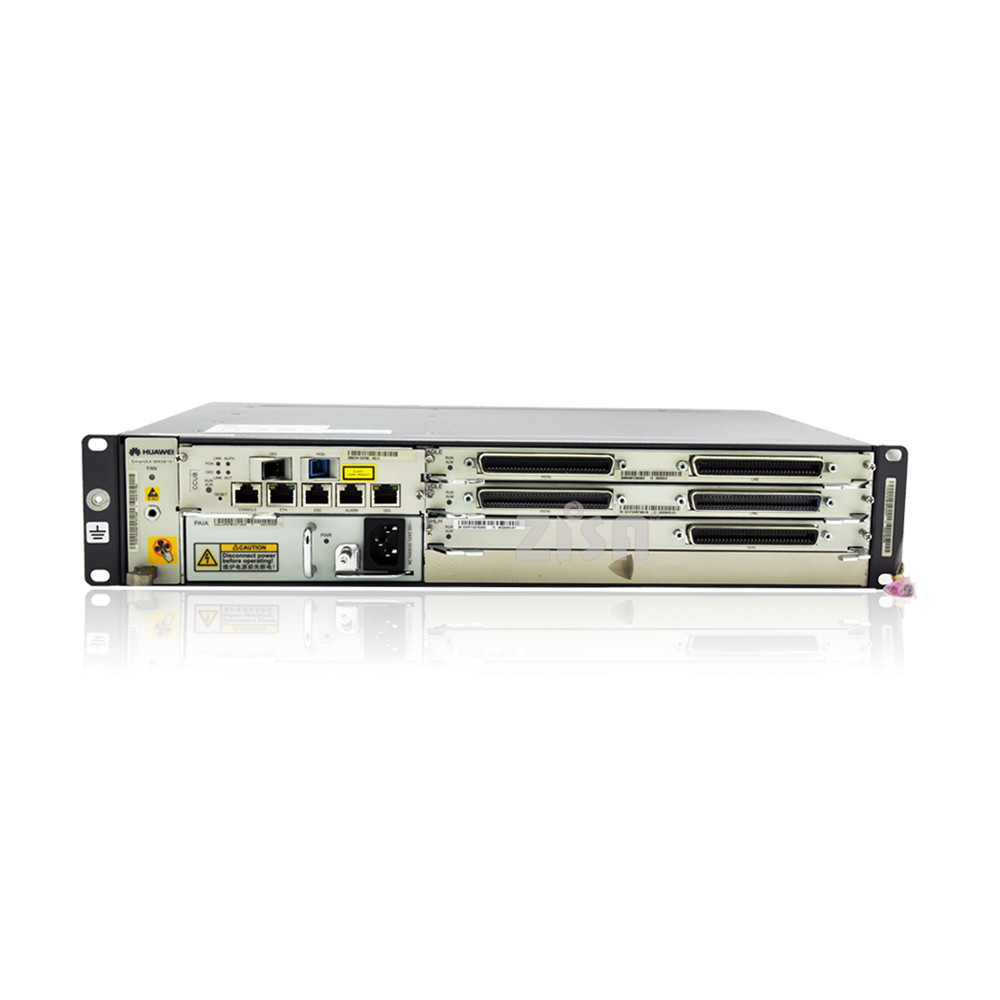

The SmartAX MA5616 (the MA5616 for short) is an industry-leading remote multi dwelling unit (MDU) launched by Huawei, which supports flexible configurations and provides broadband services on Fiber To The Building (FTTB) and Fiber To The Curb (FTTC) networks. The MA5616 is a box-type device measuring 2-U high and 19-inch wide and providing two GPON or GE uplink ports and ADSL2+,VDSL2, SHDSL, POTS, ISDN, FE and GE ports. The MA5616 features a high access density, high processing capability, high reliability, easy maintenance, environment-friendlily and energy conservation, and future-oriented architecture design and can be used in corridors, cabinets, indoor, and outdoor usage scenarios.
Characteristics
High access density: The MA5616 supports a maximum of 256 POTS users, 128 ADSL2+ users, 192 VDSL2 users, or 64FE users. The MA5616 supports 128 POTS users and 128 ADSL2+ users simultaneously by using a combo board.
Flexible configurations: Service boards are slot compatible and different types of ports can be configured flexibly, improving the actual configuration ratio and meeting different customer requirements.
Features
| Features | CCUB control board |
| GPON | ITU G.984-compliance |
| 8 T-CONTs | |
| 128 GEM ports | |
| Broadband | 4K VLANs, supporting QinQ and stacking VLANs |
| 4K MAC addresses, supporting VMAC | |
| VLAN switching | |
| Conversion from PPPoA to PPPoE and from IPoA to IPoE | |
| 802.1p, supporting PQ and WRR flow control, and ACL | |
| Voice | SIP and H.248 |
| ISDN BRA port | |
| POTS short-loop design | |
| ADSL2+ | Compliance with ITU-T G992.1 to G992.5, and T1.413 |
| Annex M | |
| ADSL2 + bonding (2-wire, 4-wire, 6-wire, or 8-wire) | |
| VDSL2 | G993.2-compliance |
| 8a, 8b, 8c, 8d, 12a, 12b, 17a, and 30a profiles | |
| 2-wire VDSL2 bonding | |
| SHDSL | G991.2-compliance |
| G.SHDSL.Bis, supporting ATM and PTM | |
| EFM bonding (2-wire, 4-wire, 6-wire, or 8-wire) | |
| Multicast | IGMPv2 and IGMPv3 |
| IGMP proxy and IGMP snooping | |
| A maximum of 1024 configurable multicast programs in the systemA maximum of 256 multicast usersA maximum of 16 concurrent multicast programs for each user | |
| Security | PPPoE + and DHCP option82 |
| Static and dynamic MAC address binding | |
| Anti-MAC and anti-IP spoofing; source MAC address and IP address filtering | |
| Anti-DoS attack and firewall | |
| Maintenance and management | SNMPv1, SNMPv2, and SNMPv3 |
| Telnet and SSHv2 | |
| Remote and batch pre-deployment | |
| Remote upgrade and monitoring |
Deployment Scenarios
The MA5616 provides two GPON or GE uplink ports and provides multiple services by supporting flexible board configurations. The MA5616 provides broadband, voice, and video services through ADSL2+/ VDSL2/FE boards, voices service through POTS boards, leased line services through SHDSL or P2P boards.
Order Information:
| MA5616 | AC or DC Power | CCUB | 32-channel ADSL2+ board (built-in SPL) | Max 128 Ports ADSL2+ for one Chassis |
| 32-channel VDSL2 board (built-in SPL) | Max 128 Ports VDSL2 for one Chassis | |||
| 16-channel G.SHDSL board (supporting ATM and PTM) | Max 64 Ports G.SHDSL for one Chassis | |||
| CCUE | 32-channel ADSL2+ board (built-in SPL) | Max 128 Ports ADSL2+ for one Chassis | ||
| 64-channel ADSL2+ board (built-in SPL) | Max 256 Ports ADSL2+ for one Chassis | |||
| 32-channel VDSL2 board (built-in SPL) | Max 128 Ports VDSL2 for one Chassis | |||
| 64-channel VDSL2 board (built-in SPL) | Max 256 Ports VDSL2 for one Chassis | |||
| 16-channel G.SHDSL board (supporting ATM and PTM) | Max 64 Ports G.SHDSL for one Chassis | |||
| 16-channel FE (electrical) board | Max 64 Ports FE for one Chassis |
