|Product Name:||ZISA 1GE GPON STICK||Application:||FTTH|
1GE GPON ONU Stick,
GPON ONU Stick FTTH,
sfp sc module 3.3V DC

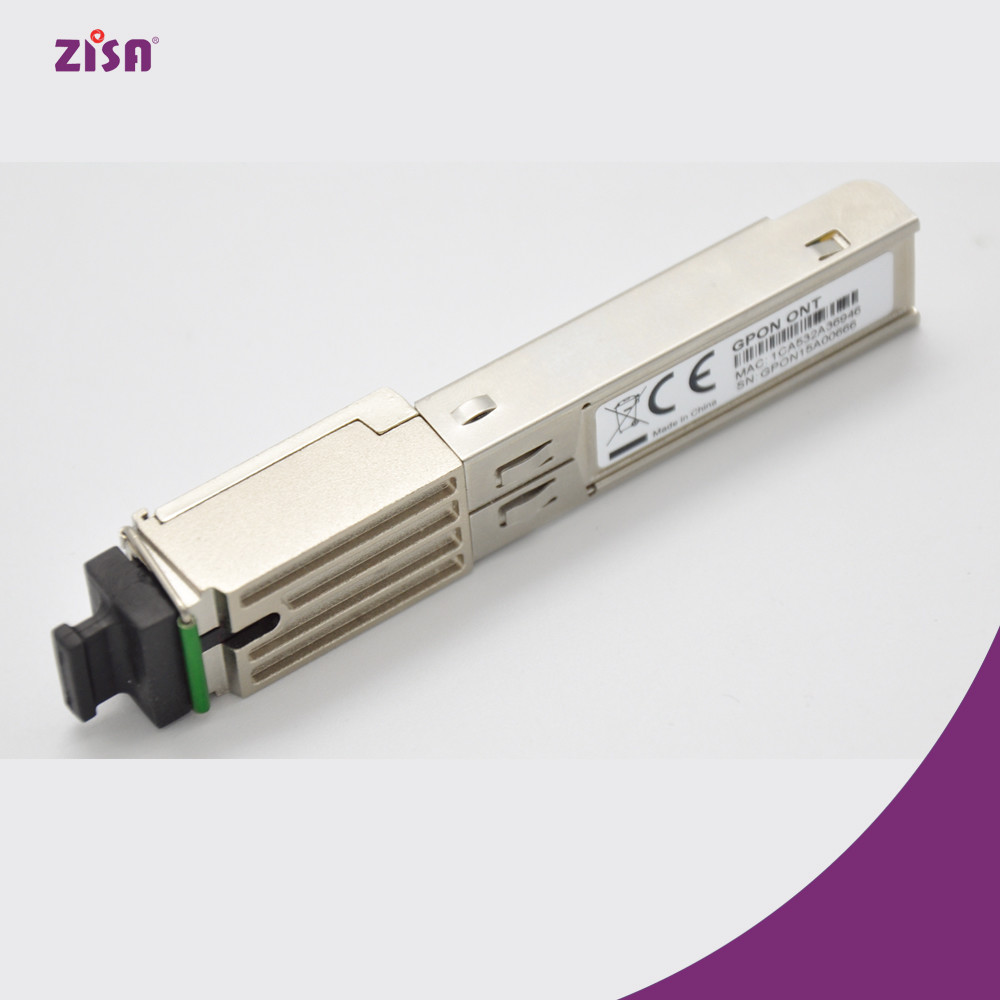

ZISA OP151S 1GE GPON SFU SFP stick module Gpon splitter FTTH solution
The OP151S SFP GPON ONU stick module has been designed for FTTx applications. OP151S is an GPON ONU device designed with the ITU-T G984 standard . It is a cost-effective GPON customer premise system and can provide 1244Mbps upstream / 2488Mbps downstream Broad-band services by connecting subscriber’s switches or routers. As compared to other broadband access technologies such as xDSL and cable modem, Passive Optical Network (PON) technology offers some competitive advantages, including a long-term life expectancy of the fiber infrastructure, lower operating costs through the reduction of “active” components, greater distance support between equipment nodes, and most importantly, much greater bandwidth. Well satisfying the high speed access demand, GPON has a more prosperous perspective.
OP151S provides the core functionality of an ITU-T G984.5 GPON Optical Network Terminal (ONT) . In addition, the device also offers some advanced functions such as DBA,AES, FEC, PLOAM,OMCI. A powerful Network Processor is provided to allow for traffic prioritiza-tion, local address filtering, and statistics gathering. A dedicated processor provides management control and responds to in-band OAM commands and Host Interface messages for configuration and statistics gathering. By means of configuring personal variables accordingly, the customer can get a device that will fit various application very well.
Industrial : -40 to 85 ºC
Commercial : 0 to 70 ℃
|Absolute Maximum Ratings|
|Storage Ambient Temperature||Tstg||-40||+85||ºC|
Exceeding the Absolute Maximum Ratings may cause irre-versible damage to the device.
|Relative Humidity - Storage||RHS||0||95||%|
|Relative Humidity - Operating||RHO||5||80||%|
|Module Supply Voltage||VCC||GND||3.6||V|
|Tx_DIS Logic HIGH State||Tx_DISH||2.0||VCC||V||LVTTL|
|Tx_DIS Logic LOW State||Tx_DISL||0||0.8||V|
|Tx_FAULT Logic HIGH State||Tx_FaultH||2.4||-||V||LVTTL (Open Collector/Drain)|
|Tx_FAULT Logic LOW State||Tx_FaultL||-||0.4||V|
|Rx_LOS Logic HIGH State||Rx_LOSH||2.4||-||V||LVTTL (Open Collector/Drain)|
|Rx_LOS Logic LOW State||Rx_LOSL||-||0.4||V|
|Recommended Operating Conditions|
|Operating Case Temperature||TCASE||0||25||70||ºC||Temperature = C|
|-40||25||85||ºC||Temperature = I|
|Module Supply Voltage||VCC||3.135||3.3||3.465||V|
|Module Supply Current (Tx and Rx)||IIN||-||550||-||MA|
|Module Power Consumption||PD||-||-||2||W|
|Optical upstream Data Rate||BR||-||1244||-||Mbps|
|Optical downstream Data Rate||BR||-||2488||-||Mbps|
Providing pluggable GPON ONU function for Ethernet Switch, Router, Home gateway & other customer premises equipment
Q1. ZISA product the quality of products.
A: As the top class total solution provider and productive service provider, we provide high quality of service to Tier1 Telco customer and Vendors. With the genius design and software customization expertise, we can leverage the best service to our customers. ZISA Product quality is same as Huawei and ZTE, and ZISA has complete product line.
Flexible , Smart and selective producing system, the top manufacture in vertical career choose our team, with decade of global market and professional experience.
Q2. ZISA after-sales service.
A:ZISA has complete software and hardware research and development. Provide reqiurment development, bug modify and 24h on-line support. For significant customers, ZISA can send technician to support.
Q3. Ways of cooperation with ZISA.
A :ZISA welcome integrator or agent to agent ZISA product. If agent has enough advantages in the market, ZISA appoint you ZISA sole agent.
Q4. About factory visit.
A :ZISA welcome significant customers to visit ZISA factory. Please make an appointment in two weeks.
Q5. About product pricing.
A :ZISA only publish sample price. The price of different agent and OEM customer is secret. ZISA gives specific price for significant projects and customers. Besides, ZISA only provide goods to agent in agent area.
