| Place of Origin: | CHINA |
|---|---|
| Brand Name: | ZISA |
| Certification: | CE |
| Model Number: | OP256CW |
| Minimum Order Quantity: | 1 |
| Price: | 44-46USD |
| Packaging Details: | box 0.5kg |
| Delivery Time: | 5-8weeks |
| Payment Terms: | T/T |
| Supply Ability: | 10000PCS |
| Name: | Fiber ONU 1Ge+3FE+RF+WIFI | Uplink: | Pon |
|---|---|---|---|
| Port: | SC/APC Or SC/UPC | Type: | ONU |
| Warranty: | 1 YEAR | Power Supply: | 12V 1A |
| Certification: | CE | Weight: | 0.2kg |
| High Light: | 1GE GPON ONU OP256CW,GPON ONU SC/APC,wifi gpon ont 1100-1600nm |
||

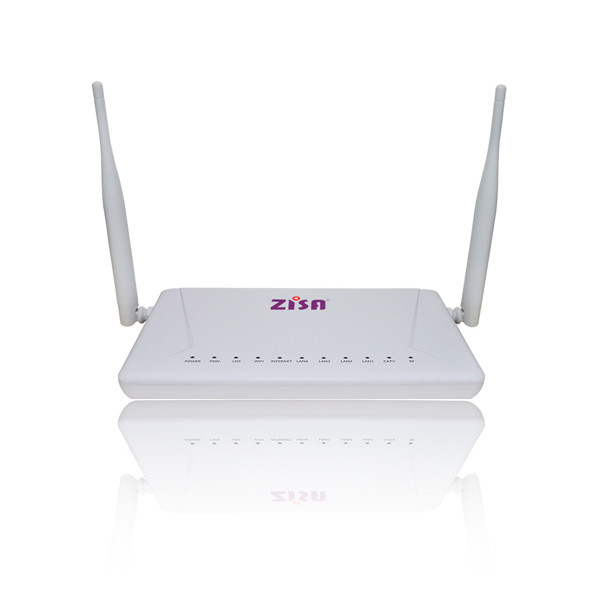

SC/APC/UPC 1GE+3FE+RF+WIFI Gpon Port Gpon Gepon Optic Onu OP256CW
Product Overview
It adopts single fiber WDM technology with downlink wavelength 1490nm, uplink wavelength 1310nm, OP256CW ONU support the comprehensivetriple-playservices, including voice, video (IPTV or VoD), and high-speed internet access service.By introducing latest fiber GPON access technology, The ZISA OP256CW GPON WiFI ONU brings carrier class high-end networking solution for advanced triple play services. It compliant with ITU-T G.984 standard, WiFi 802.11n 300 Mbps on 2.4 GHz, Layer 2/3, and CATV output as well,.
Product Specifications
| GPON(CATV)Interface & Standards | |
| Rate | Upsteam: 1.244Gbps Downsteam:2.488Gbps |
| Interface standard | ITU-T G.984.2/ITU-T G.984.3/ITU-TG.988 Class B+ |
| Launch power | Min: 0dBm Max: +5dBm |
| sensitivity | -27dBm |
| Input Power Overload | -8 dBm |
| CATV Wavelength | 1100-1600nm |
| CATV Optical return loss | >50dB |
| CATV Input optical power | -15~+2dBm |
| RF frequency | 47MHz~1000MHz |
| RF output level | 75dBuV (@-12~-2dBm@85MHz) |
| RF output return loss | >14dB |
| RF impedance | 75Ohm |
| Service Interface | |
| GPON Interface | 1 GPON(CATV) Port |
| Data Interface | 1 GE + 3FE |
| WIFI Interface | IEEE 802.11 n/g/bwireless LAN |
| Antenna Type | 2 external antennas |
| RF Interface | 1 RF output Female F-Type Connector |
| Feature | OP256CW |
| GPON Feature | Compliant with ITU-T G.984 GPON standard |
| FEC (Forward Error Correction) in both upstream and downstream | |
| QoS scheduling based on SP or WRR between GEM port and T-CONT | |
| Downstream multicast GEM port and broadcast GEM port | |
| Ethernet Feature | Support Auto-speed and MDI/MDIX auto detection |
| Internal L2 switch | |
| Advanced data processing function,Such as VLAN label processing, flowclassification | |
| Gateway Feature | WAN support Routerand Bridge mode |
| Router mode supportsPPPoE/DHCP/ static IP | |
| WAN support Internet,VoIP,IPTV,TR069 | |
| LAN supports DHCP and static IP | |
| Support NAT and NAPT | |
| WIFI Feature | 300 Mbps on 2.4 GHz |
| IEEE 802.11 n/g/b wireless LAN | |
| 2.4 GHz band: 2400 - 2483.5 MHz, | |
| WEP,WPA-PSK,WPA2-PSK and other encryption | |
| OAM Feature | Standard OMCI (the embedded operations channel)compliant with ITU-T G.988 |
| Compliant with TR-069 standard | |
| Compliant with TR-098,TR-140 terminal integrated management interface | |
| Alarm reporting, performance monitoring |
