| Place of Origin: | CHINA |
|---|---|
| Brand Name: | ZISA |
| Certification: | CE |
| Model Number: | OP258WV |
| Minimum Order Quantity: | 1 |
| Price: | 34-38USD |
| Packaging Details: | box 0.5kg |
| Delivery Time: | 5-8weeks |
| Payment Terms: | T/T |
| Supply Ability: | 10000PCS |
| Name: | Fiber ONU 1Ge+3FE+WIFI+VOIP | Uplink: | Pon |
|---|---|---|---|
| Port: | SC/APC Or SC/UPC | Type: | ONU |
| Warranty: | 1 YEAR | Power Supply: | 12V 1A |
| Certification: | CE | Weight: | 0.2kg |
| High Light: | SC APC UPC GPON ONU,WIFI VOIP GPON ONU,gepon onu OP258WV |
||

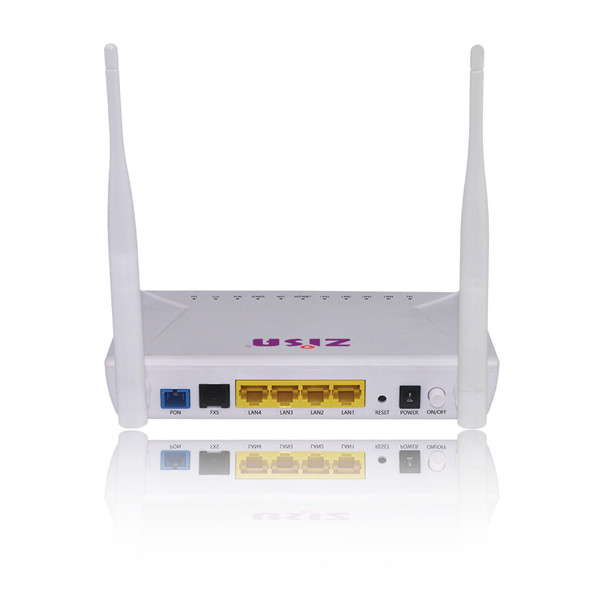

SC/APC/UPC 1GE+3FE+WIFI+VOIP Gpon Port Gpon Gepon Optic Onu OP258WV
Product Overview
They are highly reliable and easy to maintain, with guaranteed QoS for different service. And It is fully compliant with technical regulations such as ITU-T G.984.x and technical requirement of GPON Equipment (V2.1 and above version) from China Telecom.OP258WV terminal devices are designed for fulfilling FTTH and triple play service demand of fixed network operators or cable operators. The box is based on the mature Gigabit GPON technology, which have high ratio of performance to price, and the technology of 802.11 ac/n WiFi(2T2R) , Layer 2/3, and high quality VoIP as well.
Product Specifications
| Parameter | Nominal |
| Connector style | SC/PC |
| PON quantity | 1 |
| Fiber style | Single mode |
| Wavelength |
TX:1310 +/-20nm RX:1490 +/-10nm |
| PON interface standard | ITU-T G.984.2/ITU-T G.984.3/ITU-TG.988 Class B+ |
| PON interface receiving rate | 2.488Gpbs |
| PON interface transmitting rate | 1.244Gpbs |
| Output optical power | Min: 0.5dBm Max: +5dBm |
| Opticalreceiver sensitivity | Precede -29dBm |
| The length of the optical link | Max 20km |
| Parameter | Nominal |
| Dimension | 180mm×148mm×30mm(L×W×H) |
| Net weight | 0.25kg |
| Typical power consumption | <7W |
| Noise | None |
| Cooling style | Naturally cooling |
| Power supply | 12V DC(By external AC/DC adapter) |
| Installation style | Support PC, wall mount or put inside of information box. |
| Environment | -5~50℃ |
| Atmospheric pressure | 70~106Kpa |
| MTBF | 50,000hours |
| MTTR | 30minutes |
| Parameter | Nominal |
POTS Specifications
Ordering Information
| Model | Product Description |
| OP258WV | GPON ONU 1GE+3FE+11n 2*2 , 2 x External Antennas 5DBI+FXS |
