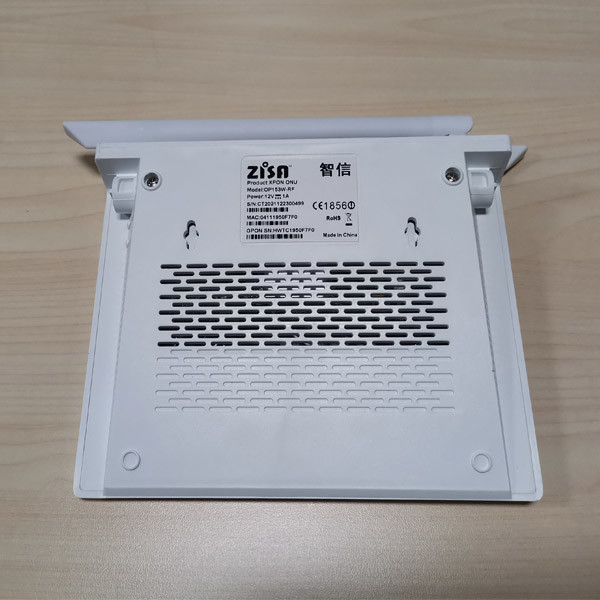

Home Office Epon Onu Wifi Realtek 9601d Chipset

Basic Information
Place of Origin: CHINA
Brand Name: ZISA
Certification: CE
Model Number: OP153W-RF
Minimum Order Quantity: 1
Price: 42-46USD
Packaging Details: box 0.5kg
Delivery Time: 5-8weeks
Payment Terms: T/T
Supply Ability: 10000PCS
Detail Information
Product Name: WIFI+CATV+1POTs Epon ONU Application: Fiber To Home
Warranty: 1 YEAR Type: WIFI+CATV+1POTs
Color: WHITE Power Supply: 12V 1000MA
Certification: CE Chipset: Realtek 9601D
High Light:

home epon onu wifi

,

realtek 9601d chipset epon onu wifi

,

office onu epon wifi


Product Description

Suitable For Home Office WIFI+CATV+1POTs EPON ONU Modem Router Splitter FTTH Solution



Feature



  • Support TR069 Remote Configuration and WEB Management
  • Support Route PPPoE/IPoE/DHCP/Static IP and Bridge mixed mode
  • Support IPv4/IPv6dual stack
  • Support IGMP transparent/snooping/proxy
  • In compliant with IEEE802.3ah standard
  • Compatible with popular OLT(HW, ZTE, FiberHome...)



Product Overview

  • 1G1F+WIFI+CATV+POTs are based on mature and stable, cost-effective XPON technology. It can switch automatically with EPON and GPON mode when it access to the EPON OLT or GPON OLT.
  • 1G1F+WIFI+CATV+POTs adopts high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of the module of China Telecom EPON CTC3.0.



Product Specifications



CATV Interface

RF, optical power : +2~-18dBm

Optical reflection loss: ≥45dB

Optical receiving wavelength: 1550±10nm

RF frequency range: 47~1000MHz, RF output impedance: 75Ω

RF output level: ≥ 82dBuV(-7dBm optical input)

AGC range: +2~-7dBm/-4~-13dBm/-5~-14dBm

MER: ≥32dB(-14dBm optical input), 35(-10dBm)

POTS Port

RJ11

Max 1km distance

Balanced Ring, 50V RMS

LED 10 LED, For Status of WIFI,WPS,PWR,LOS,PON,LAN1~LAN2, WORN,NORMAL(CATV), FXS
Push-Button 4, for Function of Power on/off, Reset, WPS, WIFI
Operating condition

Temperature : 0℃~+50℃

Humidity :10%~90%(non-condensing)

Storing Condition

Temperature : -40℃~+60℃

Humidity :10%~90%(non-condensing)





Panel lights and Introduction



Pilot Status Description
POWER On The device is powered up.
Off The device is powered down.
LOS Blink The device doses not receive optical signals.
Off The device has received optical signal.
PON On The device has registered to the PON system.
Blink The device is registering the PON system.
Off The device registration is incorrect.
LAN On Port is connected properly (LINK).
Blink Port is sending or/and receiving data (ACT).
Off Port connection exception or not connected.





FAQ



Q1. ZISA product the quality of products.
A: As the top class total solution provider and productive service provider, we provide high quality of service to Tier1 Telco customer and Vendors. With the genius design and software customization expertise, we can leverage the best service to our customers. ZISA Product quality is same as Huawei and ZTE, and ZISA has complete product line.

Flexible , Smart and selective producing system, the top manufacture in vertical career choose our team, with decade of global market and professional experience.



Q2. ZISA after-sales service.
A:ZISA has complete software and hardware research and development. Provide reqiurment development, bug modify and 24h on-line support. For significant customers, ZISA can send technician to support.

Q3. Ways of cooperation with ZISA.
A :ZISA welcome integrator or agent to agent ZISA product. If agent has enough advantages in the market, ZISA appoint you ZISA sole agent.

Q4. About factory visit.
A :ZISA welcome significant customers to visit ZISA factory. Please make an appointment in two weeks.

Q5. About product pricing.
A :ZISA only publish sample price. The price of different agent and OEM customer is secret. ZISA gives specific price for significant projects and customers. Besides, ZISA only provide goods to agent in agent area.
