CE Passed Fiber To Buliding Epon Olt Sfp OP1604e

Basic Information
Place of Origin: CHINA
Brand Name: ZISA
Certification: CE
Model Number: OP1604e
Minimum Order Quantity: 1
Price: 560-586usd
Packaging Details: 442mm×227mm× 44mm(W * D *H) 3.0KG
Delivery Time: 1week
Payment Terms: T/T
Supply Ability: 1000pcs
Detail Information
Product Name: 1U 10G Epon OLT Warranty: 10 Months
Type: FTTH EPON OLT Port: 4*RJ45+2 GE SFP +4pons
Operating Temperature: Temperature 0 To 45°C, Management Mode: CLI, Console, Telnet And WEB
Storage Temperature: Temperature -10 To 70°C, Oem/odm: Yes
High Light:

fiber to buliding epon olt sfp

,

op1604e epon olt sfp

,

fiber to buliding epon olt


Product Description

1U Fiber to Buliding 2*10G+2*GE sfp uplink EPON OLT Fibra Optica EPON Epon Cassette



Product Overview

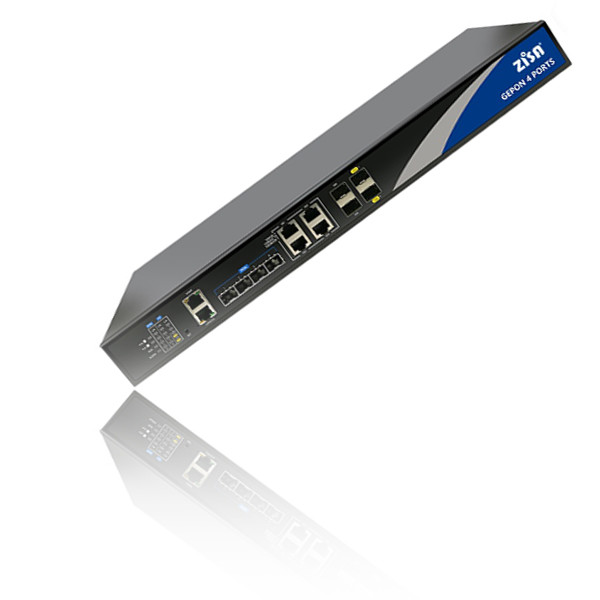

The ZISA OP1604E OLT (Figure 1) is self-developed Compact 1U EPON OLT equipment,meeting the requirements of IEEE802.3ah and meets the EPON OLT equipment requirements of YD/T 1945-2006 Technical requirements for access network——based on Ethernet Passive Optical Network (EPON) and

China telecom EPON technical requirements 3.0, possessing super EPON access capacity, carrier-class reliability and the complete security function.



Product Specifications



Local Management interface
Console RJ45EIA/TIA-232 Console management port
MGMT 1000BASE-T out-band management port
Performance
Switching Capacity 64Gbps
Package transmit rate(IPv4/IPv6) 125Mpps
Split ratio 1: 64
Maximum ONU quantity 256 ONT
Power Supply and Consumption
Power Adaptor AC Input::100 to 240 V AC, 50/60 Hz; DC Input : 36V-75V
Redundancy Design Pluggable double power supply, double AC, double DC and AC+DC
Consumption <46 W




Key Feature Support on OP1604E



Service features

Multicast



IGMPv1/v2/v3
IGMP Snooping/Proxy
IGMP filtering

QoS





Base on port or user-defined rate limitation
Base on port or user-defined priority tag, provide 802.1P, DSCP tag ability of priority
Base on port or user-defined high grade queue scheduling
priority queues and scheduler of SP, WRR and SP+WRR.
Congestion avoidance system
L2 LACP/VLAN Tag / Un-tag/VLAN transmission/QinQ/802.1D/802.1W
IEEE802.x Flow Control/Port Isolation/Port Rate Limitation/Storm control
Routing(L3) BGP/MPLS/RIP/OSPF/Arp agent,Static routing






Company Profile:



ZISA Technology Limited was created in 2004, based in Beijing.

We are an innovative ICT company for more than 10 years.

ZISA is committed to providing the professional service and solutions to oversea customers, making continuous innovation to meet the requirements of customers.As a global market company, ZISA Fibre PON equipment, wireless AP solutions and xDSL solutions have been reached over 30 countries and regions.



Our team are full of creative and energetic engineers and workers.The innovative,comprehensive IT technique was grasped by us.Some of them has been worked in famous companies.The factory which cooperate with us is T&W with huge productivity.We also have flexible selling module---ODM&OEM,as agent are all welcome.



CE Passed Fiber To Buliding Epon Olt Sfp OP1604e 0CE Passed Fiber To Buliding Epon Olt Sfp OP1604e 1
