| Place of Origin: | CHINA |
|---|---|
| Brand Name: | ZISA |
| Certification: | CE |
| Model Number: | OP153W-RF |
| Minimum Order Quantity: | 1 |
| Price: | 42-46USD |
| Packaging Details: | box 0.5kg |
| Delivery Time: | 5-8weeks |
| Payment Terms: | T/T |
| Supply Ability: | 10000PCS |
| Name: | 1GE+1FE+WIFI+CATV+1POTs Xpon ONT | Type: | ONT |
|---|---|---|---|
| Warranty: | 12 Months | OEM: | Yes |
| Power Consumption: | 4W | Power Supply: | 12V 1A |
| Certification: | CE | Weight: | 0.2kg |
| High Light: | 802.11n x pon onu,oem x pon onu,802.11n xpon fiber router |
||

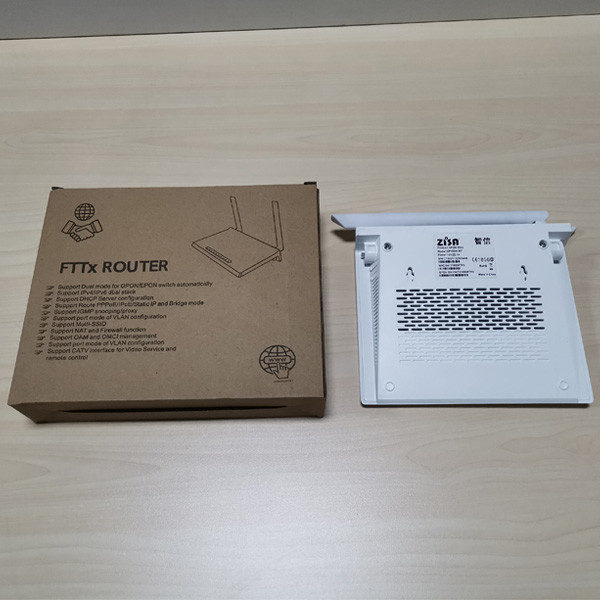

802.11n XPON Wifi GEPON ONU White 1GE 1FE WIFI CATV 1POTs CE
Feature
Application
Product Specifications
| Technical Item | Details |
| CATV Interface |
RF, optical power : +2~-18dBm Optical reflection loss: ≥45dB Optical receiving wavelength: 1550±10nm RF frequency range: 47~1000MHz, RF output impedance: 75Ω RF output level: ≥ 82dBuV(-7dBm optical input) AGC range: +2~-7dBm/-4~-13dBm/-5~-14dBm MER: ≥32dB(-14dBm optical input), ＞35(-10dBm) |
| POTS Port |
RJ11 Max 1km distance Balanced Ring, 50V RMS |
| LED | 10 LED, For Status of WIFI,WPS,PWR,LOS,PON,LAN1~LAN2, WORN,NORMAL(CATV), FXS |
| Push-Button | 4, for Function of Power on/off, Reset, WPS, WIFI |
| Operating condition |
Temperature : 0℃～+50℃ Humidity :10%～90%(non-condensing) |
| Storing Condition |
Temperature : -40℃～+60℃ Humidity :10%～90%(non-condensing) |
| Power supply | DC 12V/1A |
| Power Consumption | <6W |
| Net Weight | <0.4kg |
FAQ
Q1. ZISA product the quality of products.
A: As the top class total solution provider and productive service provider, we provide high quality of service to Tier1 Telco customer and Vendors. With the genius design and software customization expertise, we can leverage the best service to our customers. ZISA Product quality is same as Huawei and ZTE, and ZISA has complete product line.
Flexible , Smart and selective producing system, the top manufacture in vertical career choose our team, with decade of global market and professional experience.
Q2. ZISA after-sales service.
A:ZISA has complete software and hardware research and development. Provide reqiurment development, bug modify and 24h on-line support. For significant customers, ZISA can send technician to support.
Q3. Ways of cooperation with ZISA.
A :ZISA welcome integrator or agent to agent ZISA product. If agent has enough advantages in the market, ZISA appoint you ZISA sole agent.
Q4. About factory visit.
A :ZISA welcome significant customers to visit ZISA factory. Please make an appointment in two weeks.
Q5. About product pricing.
A :ZISA only publish sample price. The price of different agent and OEM customer is secret. ZISA gives specific price for significant projects and customers. Besides, ZISA only provide goods to agent in agent area.
