| Place of Origin: | CHINA |
|---|---|
| Brand Name: | ZISA |
| Certification: | CE |
| Model Number: | MA5616 |
| Minimum Order Quantity: | 1 |
| Price: | 265-2400USD |
| Packaging Details: | box 14kg |
| Delivery Time: | 1weeks |
| Payment Terms: | T/T |
| Supply Ability: | 100pcs |
| Product Name: | Support Vectoring DSLAM | Type: | Support Vectoring Control |
|---|---|---|---|
| Port: | Support Vectoring Uplink | Warranty: | 1 YEAR |
| High: | 2U | Certification: | CE |
| Operating Temperature: | -40℃ To 65℃; Startup At -25℃ | Management: | Telnet And CLI |
| High Light: | IP SmartAx MA5616 DSLAM,2U MA5616 DSLAM,dslam adsl Chassis GPON Uplink |
||

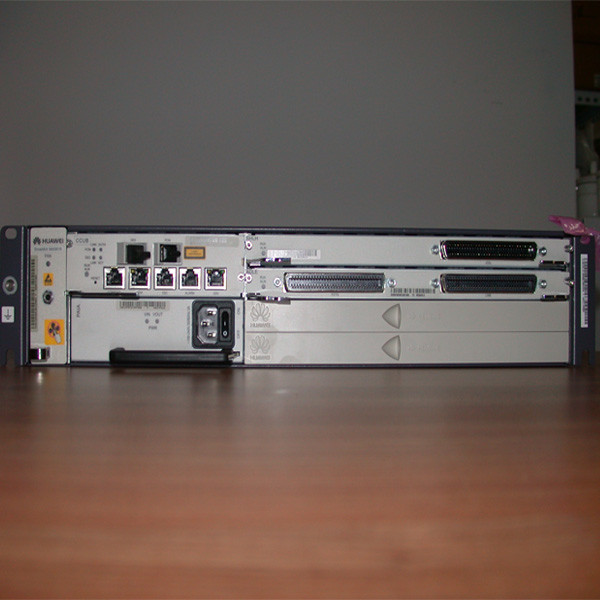

2U Support Vectoring Multiplexer IP DSLAM SmartAx MA5618 chassis GPON uplink
Characteristics
Flexible configurations: Service boards are slot compatible and different types of ports can be configured flexibly, improving the actual configuration ratio and meeting different customer requirements.
Operable IPTV services: Strong service switching capability, packet forwarding capability, and high integration (data exchange and user management) enable the MA5616 to have carrier-class multicast operation capability.
Perfect voice features, supporting basic services (voice service, fax service, and modem service) and supplementary services (three-way calling, call waiting, call transfer, calling line identification presentation, and calling number restriction).
Plug-and-play (PnP) service provisioning: The MA5616 allows remote issuing of configuration. A management channel and service channel are created after the MA5616 is powered on and registers successfully. Manual onsite configuration is not required.
The MA5616 provides two GPON or GE uplink ports and provides multiple services by supporting flexible board configurations. The MA5616 provides broadband, voice, and video services through ADSL2+/ VDSL2/FE boards, voices service through POTS boards, leased line services through SHDSL or P2P boards.
| Broadband | 4K VLANs, supporting QinQ and stacking VLANs |
| 4K MAC addresses, supporting VMAC | |
| VLAN switching | |
| Conversion from PPPoA to PPPoE and from IPoA to IPoE | |
| 802.1p, supporting PQ and WRR flow control, and ACL | |
| Voice | SIP and H.248 |
| ISDN BRA port | |
| POTS short-loop design | |
| ADSL2+ | Compliance with ITU-T G992.1 to G992.5, and T1.413 |
| Annex M | |
| ADSL2 + bonding (2-wire, 4-wire, 6-wire, or 8-wire) | |
| VDSL2 | G993.2-compliance |
| 8a, 8b, 8c, 8d, 12a, 12b, 17a, and 30a profiles | |
| 2-wire VDSL2 bonding | |
| SHDSL | G991.2-compliance |
