| Place of Origin: | CHINA |
|---|---|
| Brand Name: | ZISA |
| Certification: | CE |
| Model Number: | G2500 |
| Minimum Order Quantity: | 1 |
| Price: | 145-240USD |
| Packaging Details: | box 1kg |
| Delivery Time: | 5-8weeks |
| Payment Terms: | T/T |
| Supply Ability: | 10000PCS |
| Product Name: | EFM SHDSL MODEM | Operating Humidity: | 10%—95%, Non-condensing |
|---|---|---|---|
| Storage Humidity: | 5%—95%, Non-condensing | Power Supply: | 12V 1A |
| Color: | Gray | Type: | SHDSL MODEM |
| Certification: | CE | Chipset: | NONE |
| High Light: | EFM Modem Bridge Router,ATM Modem Bridge Router,bridge mode routers 4LAN FE |
||

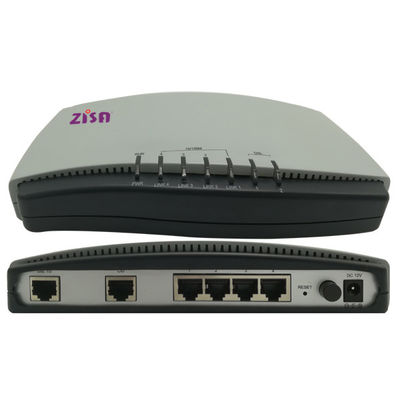

G2500 EFM/ATM G.SHDSL.BIS Modem Bridge Router 4 lan FE ports
Specification
Software
ATM Protocol
VC multiplexing and LLC encapsulation
Multi-protocol over AAL5 (RFC 1483/2684 bridged and routed PDU)
Classical IP over ATM (RFC 1577 with MTU = 1500)
4 PVCs
ATM QoS CBR, UBR, VBR, VBR-rt support
UNI 3.1/4.0 PVC
I.610 OAM F5 loopback
PPP Support
PPP (RFC 1661)
PPP over Ethernet (RFC 2516)
User authentication with PAP/CHAP
PPTP and L2TP ( VPN )
Routing Capability
Support IP/TCP/UDP/ARP/ICMP protocols
IP routing with static routing and RIPv2 (RFC1058/2453), OSPF( RFC1583 ), BGP
Network address translation (NAT/PAT) (RFC1631), one to one, many to one, many to many
DNS relay and caching (RFC1034/1035)
DHCP server (RFC2131/2132)
Support IP / MAC / DNS Filter
Support DDNS function
Bridging
IEEE 802.1D transparent learning bridge
Up to 2048 MAC learning addresses
Raid spanning tree ( 802.3w )
Configuration
Local console (RS232)
Telnet access
Web-based GUI (HTTP)
Network Management
Web-based GUI for express setup, configuration and management
Local console and Telnet access, command line and configure for sub-interfaces.
Password protected management and access control list for administration
SNMP management with SNMPv1/SNMPv2c
Software upgrade via TFTP server
Supports inband management vlan.
Hardware
| Power Supply | External power adapter 12V DC, 1000mA |
| LAN Port | RJ45 x 4 |
| WAN Port | RJ11 x 2 |
| Console Port | RJ45 x 1 |
| Operating temperature | 0° to 45°C |
| Storage temperature | -10° to 70°C |
| Housing | plastic case |
| Dimension | 220mm x 150mm x 40mm (L x W x H) |
