4 Lan Port VDSL2 MODEM V105WL 802.11n Wireless Ethernet Router

Basic Information
Place of Origin: CHINA
Brand Name: ZISA
Certification: CE
Model Number: V105WL
Minimum Order Quantity: 1
Price: 36-54USD
Packaging Details: box 1kg
Delivery Time: 5-8weeks
Payment Terms: T/T
Supply Ability: 10000PCS
Detail Information
Product Name: VDSL2+ WIFI MODEM Port: 1*RJ11+4*RJ45
WIFI: 300Mbps Color: WHITE
Type: VDSL2 MODEM Power Supply: 12V 1.5A
Certification: CE Chipset: BCM63381
High Light:

4 Lan Port VDSL2 MODEM

,

VDSL2 MODEM V105WL

,

802.11n Wireless Ethernet Router


Product Description

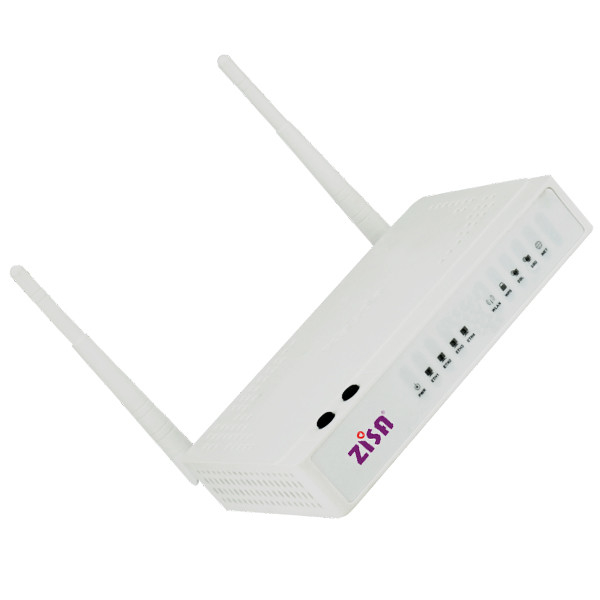

802.11n Wireless 4 lan port VDSL modem V105WL Ethernet Router







Description



The V105WL is a high-speed VDSL Router. It provides sufficient bandwidth for high performance connection to the Internet. It has Web-based graphic user interface (GUI), in which you can easily modify the settings and connect to your ISP. It also provides flow statistics, connection status, and other detailed information. The V105WL is easily upgraded and provides terminal users and ISP with the guarantee of future. The V105WL provides one xDSL interface, four Ethernet interfaces, one WAN interface, two USB host 2.0 interfaces, WPS Button and 2.4G internal WIFI antennas. The Ethernet and WIFI are used for connecting to computers, through which you can access the Internet. The WIFI interface support 802.11n 2.4GHz band. It is an ideal broadband CPE solution for both home users who wish to share high-speed Internet access and small office that wish to do business on the Internet.



Applications Diagram



  • VDSL Fall back:Compliant with all ADSL2+/VDSL2 standards
  • High Speed:Downstream rates up to 100Mbps and upstream rates up to 50Mbps
  • 2.4G 300Mbps Wi-Fi:Twoexternal antennas to deliver the best wireless signal, connect everything in your home and office in one device
  • Ethernet Port: 4 FE LAN ports extend to more devices by default, optional for 1GE WAN + 4FE LAN as ETH router
  • Multi-function USB2.0 Port: Printers, files and media can be shared with computer or using the device's FTP server
  • Operating Distance: Up to 1KM(VDSL mode), up to 7KM( ADSL mode)
  • WPS Button: Instant connection to wireless network safely
  • TR-069:Manage settings and updates remotely from any end equipment
  • Compatibility: Interoperable with all major DSLAM equipments
  • QOS:Quality of Service control for tra­ffic prioritization and bandwidth management
  • Dual WAN approach: VDSL2/ADSL2+, and Ethernet WAN for Broadband Connectivity
  • IPv6 ready:IPv4/IPv6 dual stack
  • Simple set up with GUI:GUI makes installation easier and faster



Specifications



  BASICS
IEEE Standards IEEE 802.3, 802.3u
VDSL/VDSL2 Standards

ITU-TG.993.1(VDSL)

ITU-T G.993.2(VDSL2) (Profile 8a, 8b, 8c, 8d, 12a,12b,17a)

ADSL Standards

Full-rate ANSI T1.413 issue 2

ITU-T G.992.1 (G.dmt), supporting Annex A or B

ITU -TG.992.2 (G.lite), supporting Annex A or B

ADSL2 Standards

ITU-T G.992.3 (G. dmt.bis), supporting Annex A or B, Annex L and Annex M

ITU-T G.992.4 (G.lite.bis), supporting Annex A or B

ADSL2+ Standards ITU-T G.992.5,supporting Annex A or B, Annex L and Annex M
Speed

Downstream: up to 100Mbps;

Upstream: up to 50Mbps

Operation Modes VDSL/ADSL Modem, Wireless Router, 4 Ports Switch
WAN Connection Types PPPoE, PPPoA, IPoE, Bridge, IPoA
  WIRELESS
Wireless Standards IEEE 802.11b/g/n
Wireless Speed 11n speed up to 300Mbps
WIFI Frequency Range 2.4Ghz-2.4835Ghz
Transmit Power <20dBm(EIRP)
Wireless Security 64/128-bit WEP/WPA-PSK/WPA2-PSK/TKIP/AES
Wireless Features

Multi-SSID

Access Control List

Hide Access Point

Clients Isolation

Disable WMM Advertise

Enable Wireless Multicast Forwarding (WMF)

Wireless Bridge

MAC Filter





4 Lan Port VDSL2 MODEM V105WL 802.11n Wireless Ethernet Router 0
