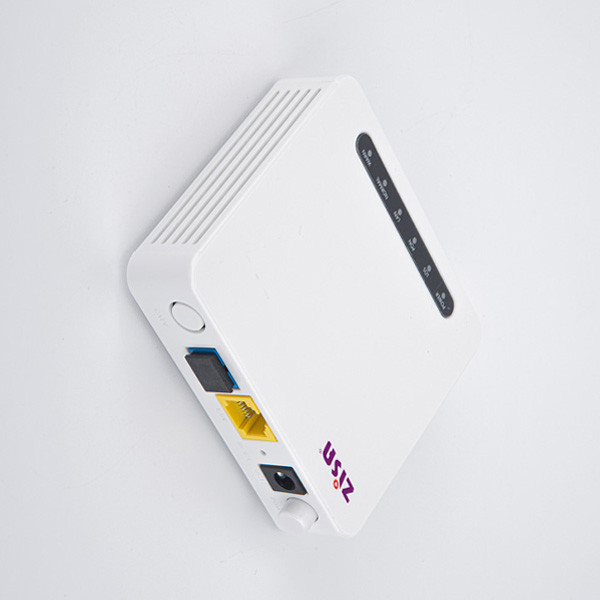

SC APC UPC 1GE GEPON ONU XPON ONU Upstream 1310nm Downstream 1490nm

Basic Information
Place of Origin: CHINA
Brand Name: ZISA
Certification: CE
Model Number: OP151
Minimum Order Quantity: 1
Price: 12-15USD
Packaging Details: box 0.5kg
Delivery Time: 5-8weeks
Payment Terms: T/T
Supply Ability: 10000PCS
Detail Information
Name: Fiber ONU 1Ge Uplink: Pon
Port: SC/APC Or SC/UPC Type: ONU
Warranty: 1 YEAR Power Supply: 12V 1A
Certification: CE Weight: 0.2kg
High Light:

SC APC UPC GEPON ONU

,

1GE GEPON ONU 1310nm

,

XPON ONU 1490nm


Product Description

SC/APC/UPC 1ge Xpon Port Xpon Gepon Optic Onu



Application

  •  Typical Solution:FTTO(Office), FTTB(Building),FTTH(Home)
  •  Typical Service:Broadband Internet access, IPTV, VOD.


Product Specifications



Technical Item Details
PON interface

1 GPON/EPON port(EPON PX20+ and GPON Class B+)

Upstream: 1310nm, Downstream: 1490nm

SC/APC connector

Receiving sensitivity: ≤-27dBm

Transmitting optical power: 0~+4dBm

Transmission distance: 20KM

LAN interface

10/100/1000Mbps auto adaptive Ethernet interfaces.

10/100/1000M Full/Half, RJ45 connector

LED 4 LED, For Status of POWER, LOS, PON, LAN
Push-Button 2, for Function of Power on/off, Reset
Operating condition

Temperature : 0℃~50℃

Humidity :10%~90%(non-condensing)

Storing Condition

Temperature : -40℃~+60℃

Humidity :10%~90%(non-condensing)

Power supply DC 12V/1A
Power Consumption <3W
Net Weight <0.2kg





Panel lights and Introduction



Pilot Status Description
POWER On The device is powered up.
Off The device is powered down.
LOS Blink The device doses not receive optical signals.
Off The device has received optical signal.
PON On The device has registered to the PON system.
Blink The device is registering the PON system.
Off The device registration is incorrect.
LAN On Port is connected properly (LINK).
Blink Port is sending or/and receiving data (ACT).
Off Port connection exception or not connected.





Company Profile:



ZISA Technology Limited was created in 2004, based in Beijing.

We are an innovative ICT company for more than 10 years.

ZISA is committed to providing the professional service and solutions to oversea customers, making continuous innovation to meet the requirements of customers.As a global market company, ZISA Fibre PON equipment, wireless AP solutions and xDSL solutions have been reached over 30 countries and regions.



Our team are full of creative and energetic engineers and workers.The innovative,comprehensive IT technique was grasped by us.Some of them has been worked in famous companies.The factory which cooperate with us is T&W with huge productivity.We also have flexible selling module---ODM&OEM,as agent are all welcome.
