| Place of Origin: | CHINA |
|---|---|
| Brand Name: | ZISA |
| Certification: | CE |
| Model Number: | OP1616 |
| Minimum Order Quantity: | 1 |
| Price: | 2950-3480usd |
| Packaging Details: | 440mm×400mm× 44mm(W * D *H) 6.5KG |
| Delivery Time: | 1week |
| Payment Terms: | T/T |
| Supply Ability: | 1000pcs |
| Product Name: | ZISA 16 Ports Gpon OLT | Power Supply: | AC Input::100 To 240 V AC, 50/60 Hz; DC Input : 36V-75V |
|---|---|---|---|
| Pon Port: | 8 Gpon Port + 4 X RJ-45 +4 X 10GE SFP+ | Operating Temperature: | Temperature 0 To 45°C, Rel. Humidity 10–90% (non-condensing) |
| Management Mode: | Command-line Interface（CLI）, Console, Telnet And WEB Configuration | Color: | Black |
| Storage Temperature: | Temperature -10 To 70°C, Rel. Humidity 10–90% (non-condensing) | Oem/odm: | Yes |
| High Light: | 16 port gpon olt 4X10G,Olt Network Products 4GE,16 Port Olt |
||
16 pon ports gpon olt OP1616 4GE 4*10G uplink GPON Cassette OLT
Product Overview

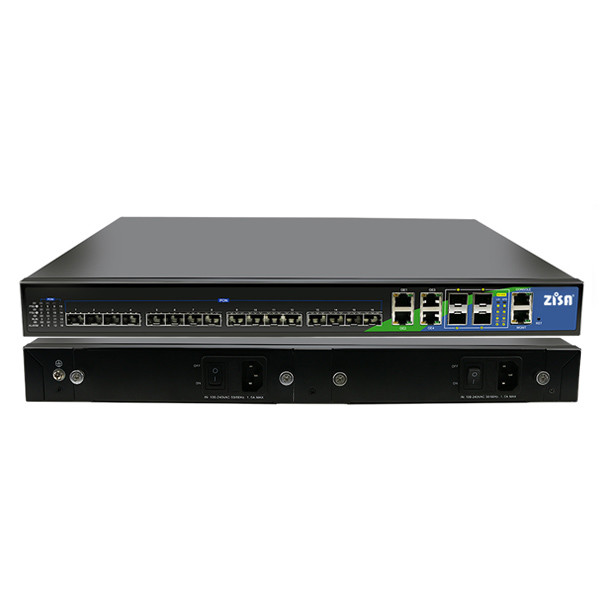

The ZISA OP1616 OLT (Figure 1) is self-developed Compact 1U GPON OLT equipment,meeting the requirements of ITU-T G.984/G.988 and relative standards of China Telecom/Unicom GPON, possessing super GPON access capacity, carrier-class reliability and the complete security function. It can satisfy long-distance optical fiber access requirement on account of its excellent management, maintenance and monitoring capability, abundant service features and flexible network mode. OP1616 can be used with NMS3000 network management system so as to provide users with the perfect solution.
The OP1616 OLT provides 16 *Downsteam GPON ports, 4 * Uplink GE ETH ports and 4* Uplink 10G SFP+ ports. Up to 1:128 Split ratio for up to 2048 GPON users. The 1U pizzabox design is for easy installation, Maintenance and Space saving. OP1616 is suitable for Broadcast three in one, video surveillance network, enterprise LAN, Internet of Things, etc.
Product Specifications
| Network interface | |
| GPON interface | 16 x GPON (1.25/2.5 Gbps) |
| 10GE Ethernet | 4 x 10GE SFP+ |
| 1GE Ethernet | 4 x RJ-45 |
| PON interface | |
| GPON | ITU-TG.984.x standard |
| Local Management interface | |
| Console | RJ-45EIA/TIA-232 Console management port |
| MGMT | 1000BASE-T out-band management port |
| Performance | |
| Switching Capacity | 102.5Gbps |
| Package transmit rate(IPv4/IPv6) | 96Mpps |
| Split ratio | 1:128 |
| Maximum ONU quantity | 4096GEM port-ids, 1024 T-CONT, 128 ONT |
| Power Supply and Consumption | |
| Power Adaptor | AC Input::100 to 240 V AC, 50/60 Hz; DC Input : 36V-75V |
| Redundancy Design | Pluggable double power supply, double AC, double DC and AC+DC |
| Consumption | ＜84 W |
| Environmental conditions | |
| Storage | temperature -10 to 70°C, rel. humidity 10–90% (non-condensing) |
| Operation | temperature 0 to 45°C, rel. humidity 10–90% (non-condensing) |
| Physical specifications | |
| Dimensions | 440mm×400mm× 44mm(W * D *H) |
| Weight | ＜ 6.5KG |
Key Feature Support on OP1616
| Ethernet switching (L2) features | |||
|
VLAN
|
4K VLANentries | ||
| Port-based QinQ and Selective QinQ (StackVLAN) | |||
| Port-based/MAC-based/IP subnet-based VLA | |||
|
Spanning tree
|
IEEE 802.1x STP/RSTP/MSTP | ||
| ONU remote loop detection | |||
|
MAC
|
MAC Black Hole | ||
| Port MAC limit | |||
| 64K MAC address | |||
|
Port
|
Bi-direction bandwidth control | ||
| Port mirroring and traffic mirroring | |||
| Service features | |||
|
Multicast
|
IGMPv1/v2/v3 | ||
| IGMP Snooping/Proxy | |||
| IGMP filtering | |||
| PIM-SM | |||
|
QoS
|
Base on port or user-defined rate limitation | ||
| Base on port or user-defined priority tag, provide 802.1P, DSCP tag ability of priority | |||
| Base on port or user-defined high grade queue scheduling | |||
| Priority queues and scheduler of SP, WRR and SP+WRR. | |||
| Congestion avoidance system | |||
| Routing | BGP | ||
| RIP | |||
| MPLS | |||
| OSPF | |||
| Security features | |||
|
User security
|
Anti-ARP-spoofing deceive defend | ||
| Anti-ARP-flooding flooding attack automatic control | |||
| IP,MAC,port and VLAN binding | |||
| TACACS+ Authentication | |||
|
Device security
|
Defend DOS attack | ||
| Security IP login through Telnet | |||
| Hierarchical management and password protection of users | |||
|
Network security
|
IP address,VLAN ID,MAC address and port manual binding | ||
| Port broadcast/multi/DLF storm control | |||
| Base on source / destination MAC address,VLAN,802.1p,ToS,DiffServ,source/ destination IP(IPv4/IPv6) address,TCP/UDP port numberprotocol type of IP package flow classify and flow defined regulation management,support package header 80 byte depth L2-L7 ACLflow filtrate | |||
| Dynamic ARP table-based binding | |||
| DHCP Option82 and PPPoE+ upload user’s physical location | |||
|
Network management
|
Command-line interface(CLI), Console, Telnet and WEB configuration | ||
| RMON (Remote Monitoring)1/2/3/9 groups of MIB | |||
| System configuration with SNMPv1/v2/v3 | |||
| NTP(Network Time Protocol) | |||
| NMS3000 network management | |||
Ordering Information
| Model | Product Description |
| OP1616 | 16*GPON, 4*GE port, 4*10GE/GE SFP+, Pluggable Dual Power Supply |
| ZS100PWRAC | AC Power module for OP1616 |
| ZS100PWRDC | DC Power module for OP1616 |
FAQ
Q1. ZISA product the quality of products.
A: As the top class total solution provider and productive service provider, we provide high quality of service to Tier1 Telco customer and Vendors. With the genius design and software customization expertise, we can leverage the best service to our customers. ZISA Product quality is same as Huawei and ZTE, and ZISA has complete product line.
Flexible , Smart and selective producing system, the top manufacture in vertical career choose our team, with decade of global market and professional experience.
Q2. ZISA after-sales service.
A:ZISA has complete software and hardware research and development. Provide reqiurment development, bug modify and 24h on-line support. For significant customers, ZISA can send technician to support.
Q3. Ways of cooperation with ZISA.
A :ZISA welcome integrator or agent to agent ZISA product. If agent has enough advantages in the market, ZISA appoint you ZISA sole agent.
Q4. About factory visit.
A :ZISA welcome significant customers to visit ZISA factory. Please make an appointment in two weeks.
Q5. About product pricing.
A :ZISA only publish sample price. The price of different agent and OEM customer is secret. ZISA gives specific price for significant projects and customers. Besides, ZISA only provide goods to agent in agent area.
