| Place of Origin: | CHINA |
|---|---|
| Brand Name: | ZISA |
| Certification: | CE |
| Model Number: | MA5616 |
| Minimum Order Quantity: | 1 |
| Price: | 265-2345USD |
| Packaging Details: | box 14kg |
| Delivery Time: | 1weeks |
| Payment Terms: | T/T |
| Supply Ability: | 100pcs |
| Product Name: | IP DSLAM | Application: | FTTH |
|---|---|---|---|
| Type: | MDU | Warranty: | 1 YEAR |
| Certification: | CE | Port: | 32-128 Vdsl2 Port |
| Operating Temperature: | -40℃ To 65℃; Startup At -25℃ | Management: | Telnet And CLI |
| High Light: | 802.11 n vdsl2 ZISA,IP DSLAM FTTH,MA5616 MASN DSLAM |
||

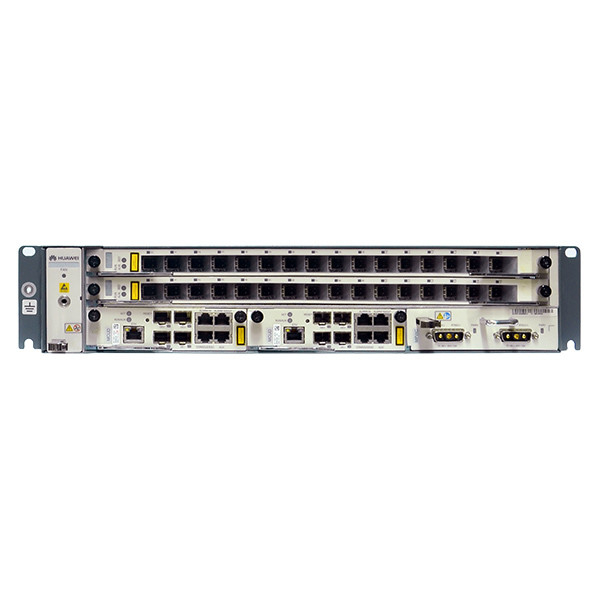

ZISA IP DSLAM MA5616 MASN DSLAM super vectoring VDLE card DSLAM
The SmartAX MA5616 (the MA5616 for short) is an industry-leading remote multi dwelling unit (MDU) launched by Huawei, which supports flexible configurations and provides broadband services on Fiber To The Building (FTTB) and Fiber To The Curb (FTTC) networks. The MA5616 is a box-type device measuring 2-U high and 19-inch wide and providing two GPON or GE uplink ports and ADSL2+,VDSL2, SHDSL, POTS, ISDN, FE and GE ports. The MA5616 features a high access density, high processing capability, high reliability, easy maintenance, environment-friendlily and energy conservation, and future-oriented architecture design and can be used in corridors, cabinets, indoor, and outdoor usage scenarios.
Characteristics
High access density: The MA5616 supports a maximum of 256 POTS users, 128 ADSL2+ users, 192 VDSL2 users, or 64FE users. The MA5616 supports 128 POTS users and 128 ADSL2+ users simultaneously by using a combo board.
Flexible configurations: Service boards are slot compatible and different types of ports can be configured flexibly, improving the actual configuration ratio and meeting different customer requirements.
Support for the combo board to improve the access density, reduce the space of the equipment room, and simplify cable routing complexity.
Support for the P2P optical access board (4GE+4FE) to provide high bandwidth for valued customers.
Support for 48-V backup power (lead-acid batteries and LiFePO4 batteries).
Features
| Features | CCUB control board |
| GPON | ITU G.984-compliance |
| 8 T-CONTs | |
| 128 GEM ports | |
| Broadband | 4K VLANs, supporting QinQ and stacking VLANs |
| 4K MAC addresses, supporting VMAC | |
| VLAN switching | |
| Conversion from PPPoA to PPPoE and from IPoA to IPoE | |
| 802.1p, supporting PQ and WRR flow control, and ACL | |
| Voice | SIP and H.248 |
| ISDN BRA port | |
| POTS short-loop design | |
| ADSL2+ | Compliance with ITU-T G992.1 to G992.5, and T1.413 |
| Annex M | |
| ADSL2 + bonding (2-wire, 4-wire, 6-wire, or 8-wire) | |
| VDSL2 | G993.2-compliance |
| 8a, 8b, 8c, 8d, 12a, 12b, 17a, and 30a profiles | |
| 2-wire VDSL2 bonding | |
| SHDSL | G991.2-compliance |
| G.SHDSL.Bis, supporting ATM and PTM | |
| EFM bonding (2-wire, 4-wire, 6-wire, or 8-wire) | |
| Multicast | IGMPv2 and IGMPv3 |
| IGMP proxy and IGMP snooping | |
| A maximum of 1024 configurable multicast programs in the systemA maximum of 256 multicast usersA maximum of 16 concurrent multicast programs for each user | |
| Security | PPPoE + and DHCP option82 |
| Static and dynamic MAC address binding | |
| Anti-MAC and anti-IP spoofing; source MAC address and IP address filtering | |
| Anti-DoS attack and firewall | |
| Maintenance and management | SNMPv1, SNMPv2, and SNMPv3 |
| Telnet and SSHv2 | |
| Remote and batch pre-deployment | |
| Remote upgrade and monitoring |
FAQ
Q1. ZISA product the quality of products.
A: As the top class total solution provider and productive service provider, we provide high quality of service to Tier1 Telco customer and Vendors. With the genius design and software customization expertise, we can leverage the best service to our customers. ZISA Product quality is same as Huawei and ZTE, and ZISA has complete product line.
Flexible , Smart and selective producing system, the top manufacture in vertical career choose our team, with decade of global market and professional experience.
Q2. ZISA after-sales service.
A:ZISA has complete software and hardware research and development. Provide reqiurment development, bug modify and 24h on-line support. For significant customers, ZISA can send technician to support.
Q3. Ways of cooperation with ZISA.
A :ZISA welcome integrator or agent to agent ZISA product. If agent has enough advantages in the market, ZISA appoint you ZISA sole agent.
Q4. About factory visit.
A :ZISA welcome significant customers to visit ZISA factory. Please make an appointment in two weeks.
Q5. About product pricing.
A :ZISA only publish sample price. The price of different agent and OEM customer is secret. ZISA gives specific price for significant projects and customers. Besides, ZISA only provide goods to agent in agent area.
