| Place of Origin: | CHINA |
|---|---|
| Brand Name: | ZISA |
| Certification: | CE |
| Model Number: | OP151 |
| Minimum Order Quantity: | 1 |
| Price: | 12-15USD |
| Packaging Details: | box 0.5kg |
| Delivery Time: | 5-8weeks |
| Payment Terms: | T/T |
| Supply Ability: | 10000PCS |
| Product Name: | ZISA 1GE Xpon ONU | Application: | FTTH |
|---|---|---|---|
| Color: | WHITE | Type: | ONU |
| Warranty: | 1 YEAR | Power Supply: | 12V 1A |
| Certification: | CE | Chipset: | Realtek 9601D |
| High Light: | XPON OLT Splitter Fiber Optic ONU,Fiber Optic ONU FTTH,GPON ONU Modem Fiber Optic |
||

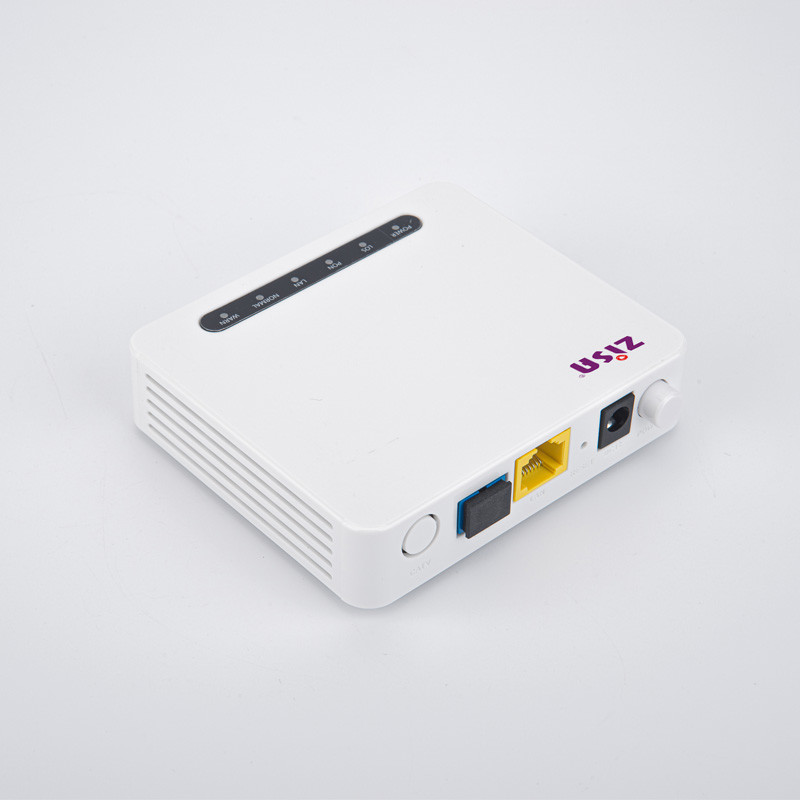

ZISA OP151 Fiber Optic onu Manufacturer/ XPON OLT Xpon splitter FTTH solution
Product Overview
Feature
Product Specifications
| Technical Item | Details |
| PON interface |
1 GPON/EPON port(EPON PX20+ and GPON Class B+) Upstream: 1310nm, Downstream: 1490nm SC/APC connector Receiving sensitivity: ≤-27dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM |
| LAN interface |
10/100/1000Mbps auto adaptive Ethernet interfaces. 10/100/1000M Full/Half, RJ45 connector |
| LED | 4 LED, For Status of POWER, LOS, PON, LAN |
| Push-Button | 2, for Function of Power on/off, Reset |
| Operating condition |
Temperature : 0℃～50℃ Humidity :10%～90%(non-condensing) |
| Storing Condition |
Temperature : -40℃～+60℃ Humidity :10%～90%(non-condensing) |
| Power supply | DC 12V/1A |
| Power Consumption | <3W |
| Net Weight | <0.2kg |
Panel lights and Introduction
| Pilot | Status | Description |
| POWER | On | The device is powered up. |
| Off | The device is powered down. | |
| LOS | Blink | The device doses not receive optical signals. |
| Off | The device has received optical signal. | |
| PON | On | The device has registered to the PON system. |
| Blink | The device is registering the PON system. | |
| Off | The device registration is incorrect. | |
| LAN | On | Port is connected properly (LINK). |
| Blink | Port is sending or/and receiving data (ACT). | |
| Off | Port connection exception or not connected. |
FAQ
Q1. ZISA product the quality of products.
A: As the top class total solution provider and productive service provider, we provide high quality of service to Tier1 Telco customer and Vendors. With the genius design and software customization expertise, we can leverage the best service to our customers. ZISA Product quality is same as Huawei and ZTE, and ZISA has complete product line.
Flexible , Smart and selective producing system, the top manufacture in vertical career choose our team, with decade of global market and professional experience.
Q2. ZISA after-sales service.
A:ZISA has complete software and hardware research and development. Provide reqiurment development, bug modify and 24h on-line support. For significant customers, ZISA can send technician to support.
Q3. Ways of cooperation with ZISA.
A :ZISA welcome integrator or agent to agent ZISA product. If agent has enough advantages in the market, ZISA appoint you ZISA sole agent.
Q4. About factory visit.
A :ZISA welcome significant customers to visit ZISA factory. Please make an appointment in two weeks.
Q5. About product pricing.
A :ZISA only publish sample price. The price of different agent and OEM customer is secret. ZISA gives specific price for significant projects and customers. Besides, ZISA only provide goods to agent in agent area.
