8 Pon GPON OLT OP1608 4GE 2X10G Uplink Cassette Type 4 RJ45 2 SFP

Basic Information
Place of Origin: CHINA
Brand Name: ZISA
Certification: CE
Model Number: OP1608
Minimum Order Quantity: 1
Price: 1895-2000usd
Packaging Details: 440mm×345mm× 44mm(W * D *H) 6.0KG
Delivery Time: 1week
Payment Terms: T/T
Supply Ability: 1000pcs
Detail Information
Product Name: ZISA 8 Ports Gpon OLT Power Supply: AC Input::100 To 240 V AC, 50/60 Hz; DC Input : 36V-75V
Pon Port: 8 Gpon Port + 4 X RJ-45 + 2 X SFP +2 X 10GE SFP+ Operating Temperature: Temperature 0 To 45°C, Rel. Humidity 10–90% (non-condensing)
Management Mode: Command-line Interface(CLI), Console, Telnet And WEB Configuration Color: Black
Storage Temperature: Temperature -10 To 70°C, Rel. Humidity 10–90% (non-condensing) Oem/odm: Yes
High Light:

8 pon GPON OLT

,

GPON OLT OP1608

,

OLT 4GE 2X10G Uplink


Product Description

8 pon ports gpon olt OP1608 4GE 2*10G uplink GPON Cassette OLT



Product Overview

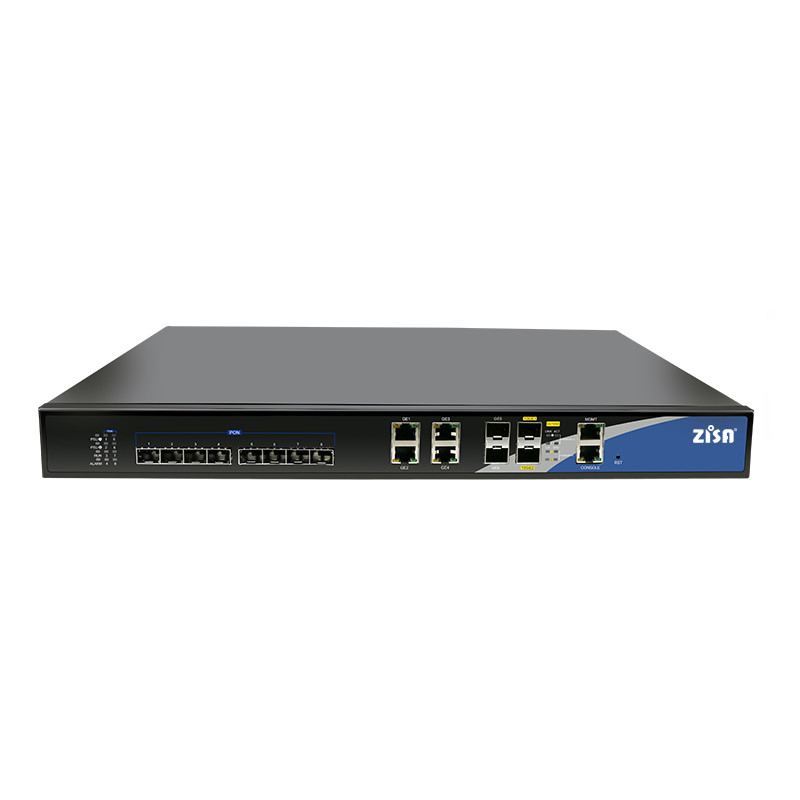

The ZISA OP1608 OLT (Figure 1) is self-developed Compact 1U GPON OLT equipment,meeting the requirements of ITU-T G.984/G.988 and relative standards of China Telecom/Unicom GPON, possessing super GPON access capacity, carrier-class reliability and the complete security function. It can satisfy long-distance optical fiber access requirement on account of its excellent management, maintenance and monitoring capability, abundant service features and flexible network mode. OP1608 can be used with NMS3000 network management system so as to provide users with the perfect solution.





8 Pon GPON OLT OP1608 4GE 2X10G Uplink Cassette Type 4 RJ45 2 SFP 0



Product Specifications



Network interface
GPON interface 8 x GPON (2.5/1.25 Gbps)
10GE Ethernet 2 x 10GE SFP+
1GE Ethernet 4 x RJ-45 + 2 x SFP
PON interface
GPON ITU-TG.984.x standard
Local Management interface
Console RJ-45EIA/TIA-232 Console management port
MGMT 1000BASE-T out-band management port
Performance
Switching Capacity 68Gbps
Split ratio 1:128
Maximum ONU quantity 4096GEM port-ids, 1024 T-CONT, 128 ONT
Power Supply and Consumption
Power Adaptor AC Input::100 to 240 V AC, 50/60 Hz; DC Input : 36V-75V
Redundancy Design Pluggable double power supply, double AC, double DC and AC+DC
Consumption <70 W
Environmental conditions
Storage temperature -10 to 70°C, rel. humidity 10–90% (non-condensing)
Operation temperature 0 to 45°C, rel. humidity 10–90% (non-condensing)
Physical specifications
Dimensions 440mm×345mm× 44mm(W * D *H)
Weight < 6.0KG




FAQ



Q1. ZISA product the quality of products.
A: As the top class total solution provider and productive service provider, we provide high quality of service to Tier1 Telco customer and Vendors. With the genius design and software customization expertise, we can leverage the best service to our customers. ZISA Product quality is same as Huawei and ZTE, and ZISA has complete product line.

Flexible , Smart and selective producing system, the top manufacture in vertical career choose our team, with decade of global market and professional experience.



Q2. ZISA after-sales service.
A:ZISA has complete software and hardware research and development. Provide reqiurment development, bug modify and 24h on-line support. For significant customers, ZISA can send technician to support.

Q3. Ways of cooperation with ZISA.
A :ZISA welcome integrator or agent to agent ZISA product. If agent has enough advantages in the market, ZISA appoint you ZISA sole agent.

Q4. About factory visit.
A :ZISA welcome significant customers to visit ZISA factory. Please make an appointment in two weeks.

Q5. About product pricing.
A :ZISA only publish sample price. The price of different agent and OEM customer is secret. ZISA gives specific price for significant projects and customers. Besides, ZISA only provide goods to agent in agent area.
