Mini 1GE EPON ONU Smart and Small QF-ES101S for FTTH and FTTB Cost-Effective and Simple

Basic Information
Place of Origin: China
Brand Name: Qualfiber/OEM
Model Number: QF-GS101S
Minimum Order Quantity: 100
Price: 9~11.5
Packaging Details: cartoon box
Delivery Time: 5-15 days
Payment Terms: T/T, Western Union
Supply Ability: 200000 per month
Contact Now
Uplink: 1 GPON Interface, Symmetric 1.25Gbps Downlink: 2.5G
Wavelength: Tx1310nm/Rx1490nm Gross Weight: 0.21kg
Dimension: 75mm*75mm*25mm

Mini ONU EPON ONT 1GE Smart EPON ONU QF-ES101S for FTTH and FTTB Cost-Effective and Simple

1GE EPON mini ONU is a new energy-saving and environment-friendly passive optical network terminal of Qualfiber. It provides a 10/100/1000Mbps Base-T LAN interface, one optical PON interface, support router function, suitable for home and small business.
Click to see 1GE XPON ONU mini in the same type. OEM is available.

Why we choose this mini ONU instead of multi-LAN-interface and Wi-Fi ONU?

-There are always many obstacles, walls, furniture, and other things may reduce the WiFi signal especially when you're living a big house or building. Then the WiFi extender became popular a few years ago. However, we have to switch the WiFi name and reconnect when we move to another place. Then we get mesh routers now, which solved all the problems. So this cost-effective

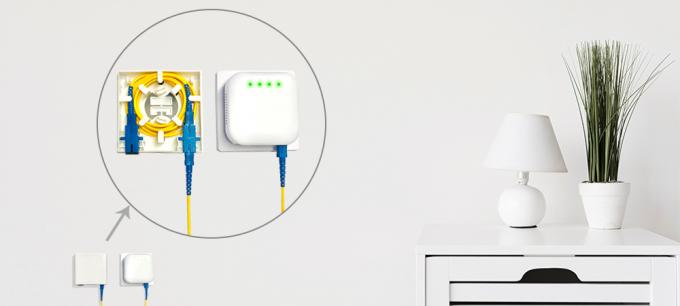

means power-saving and prevent waste of the multi-LAN-interface and WiFi when we already have a router or mesh router. The cabling of LAN became much easier when you use the mesh router.

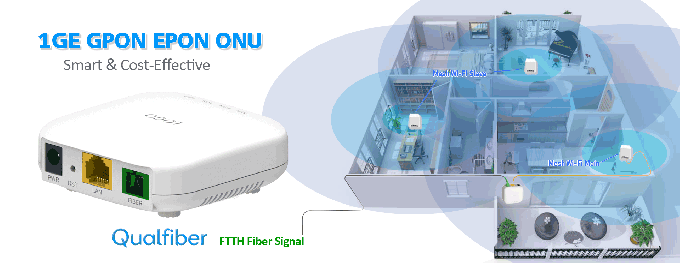

- Please check the picture below and you may find 1GE ONU is enough when your customers don't need the IPTV or VoIP service. or these services will be provided by other lines.


Mini 1GE EPON ONU Smart and Small QF-ES101S for FTTH and FTTB Cost-Effective and Simple

Features

  1. It takes the PTMP (point to multipoint)network topology, effectively collects and converges scattered Ethernet services, and provides the 10/100/1000M Ethernet standard RJ45 interface, smoothly interconnects with existing networks.
  2. The Dynamic Bandwidth Allocation (DBA) mechanism enables all users to share the 1.25Gbps bandwidth reasonably, guaranteeing a reliable QoS.
  3. Supports IGMP multicast, effective use of broadband, multicast VLAN, Telecom EPON CTC3.0 protocol, remote management through OLT and local management as well.
  4. Supports FEC and DBA, IEEE802.1Q VLAN protocol, remote loopback, and network status diagnosis;
  5. Supports storm control, NAT, PPPOE, DHCP Server Client, Route;

Mini ONU XPON ONT 1GE Smart GPON ONU QF-XS101S for FTTH and FTTB Cost-Effective and Simple

Mini ONU XPON ONT 1GE Smart GPON ONU QF-XS101S for FTTH and FTTB Cost-Effective and Simple

Technical Parameter

Module

EPON ONU 1GE

User interface

1*10/100/1000M RJ45 port.

PON

Transmission speed :upstream 1.25Gbps /downstream 1.25Gbps
Network coverage radius: 20KM
Optical receive sensitivity:≥-28dBm
Continuous light power: 0.5dBm~+5dBm
Security: ONU authentication mechanism

Protocol

Compliant with IEEE 802.3ah
YD/T 1475-2006
IEEE 802.1D, Spanning Tree
IEEE 802.1Q, VLAN
IEEE 802.1w, RSTP
IEEE 802.3ad (LACP)
Ethernet–II, Ethernet-SNAP

Route

Support NAT
Support PPPOE
Support Server Client
Support Route

VLAN

Port-based VLAN
GVRP
IEEE 802.1Q VLAN

QoS

Backpressure flow control(half-duplex)
IEEE 802.3x flow control(full-duplex)
Prevent Head Of Line
IEEE 802.1p, CoS
WR, SP and FIFO queue scheduling algorithm
Port rate limit

Safety

IEEE 802.1x, access control based upon Port; support local and remote RADIUS.
CHAP,EAP certification;
Storm control, port protection,

Management

Various management modes such as Web, TELNET
Debug function.

Size

80mm(L)×80mm(W)×25mm(H)

Environment

Operating temperature:0℃~60℃;
Operating humidity:10%~85% non-condensing

Storage temperature:-40℃~80℃;
Storage humidity:5%~95% non-condensing

Power supply

110~240VAC 12V/0.5A DC
Power interface size:2.1mm/5.5mm or Customized

Power Consumption

2.5W


Order Information

Module

Description

QF-ES101S

EPON ONU, One 10/100/1000M RJ45 port. 1 Fiber interface for GPON,Color: White/Black/Creamy/Customized
